Conmutador Huawei CE16808
Descripción

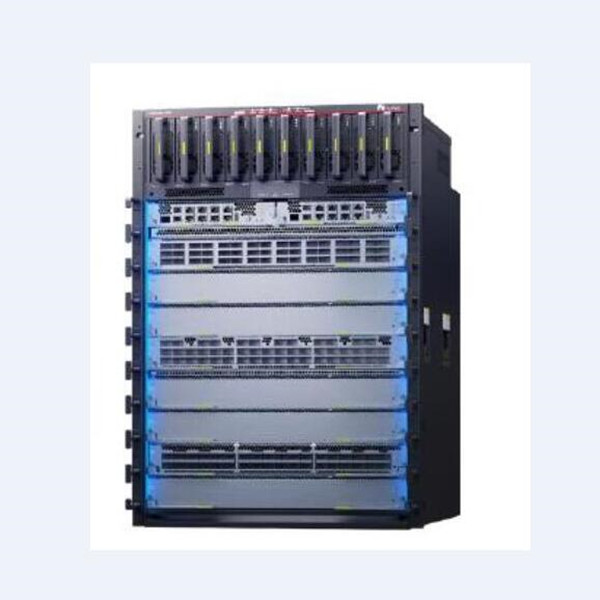

Huawei CE16808 Switch High-Performance Data Center Core Switch
The Huawei CE16808 Switch is a high-performance core switch designed for large-scale data centers and cloud computing environments. Ideal for enterprises and service providers, it delivers ultra-high switching capacity, low latency, and intelligent traffic management. With its modular architecture and support for advanced features like NSR, ISSU, and IPv6, the CE16808 ensures reliable, scalable, and future-ready network infrastructure.
Descripción general del producto
Huawei CE16808 Switch is designed with advanced hardware architecture. The maximum support of the whole machine is 734/1548Tbps switching capacity. Currently, it supports up to 576 100GE, 576 40GE or 2304 10GE full line speed interfaces. At the same time, CE16808 Switch features industry-leading backplane-free Clos switching fabrics and industrial-grade reliability, as well as rigorous front and rear duct designs and support for rich data center features. In addition, the switch can interconnect with iMaster NCE-Fabric through standard protocols such as NETCONF and SNMP to implement network automatic management and control, providing more efficient and intelligent operation methods, simplifying network management, and reducing the OPEX. It also uses Virtual System (VS) technology to provide an industry-leading virtualization capability that enables one switch to be virtualized into as many as 16 logical switches. This 1:16 ratio enables one core switch to manage services for an enterprise’s multiple service areas such as production, office, and DMZ, or for multiple tenants.
Huawei CE16808 Switch Specifications

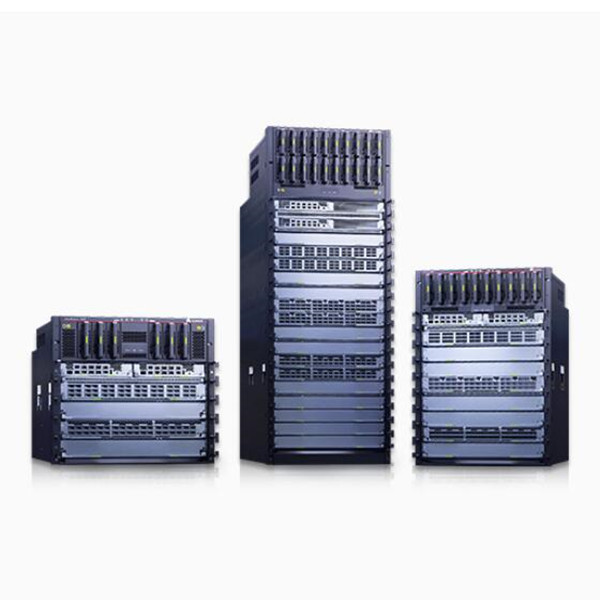

| Model | CloudEngine 16804 | CloudEngine 16808 | CloudEngine 16816 |
| Capacidad de conmutación | 43/387 Tbit/s1 | 86/774 Tbit/s1 | 173/1548 Tbit/s1 |
| Forwarding Performance | 11,280 Mpps | 22,560 Mpps | 45,120 Mpps |
| Ranuras de servicio | 4 | 8 | 16 |
| Switching Fabric Module Slots | 6 (scalable to 9 for future expansion) | ||
| Fabric Architecture | Clos architecture, cell switching, VoQ | ||
| Airflow Design | Strict front-to-back airflow design | ||
| Virtualization | M-LAG | ||
| VS (1:16 virtualization) | |||
| Cluster Switch System (CSS)2 | |||
| VXLAN and VXLAN bridging | |||
| QinQ access VXLAN | |||
| L2/L3 | VLAN, STP, LACP | ||
| Static route, IPv4/IPv6 dynamic route protocol | |||
| IP packet fragmentation and reassembly | |||
| SFC | IETF-defined NSH | ||
| Reliability | Microsegmentation | ||
| Hardware-based Bidirectional Forwarding Detection (BFD) | |||
| O&M | Telemetry | ||
| ERSPAN+ | |||
| iPCA | |||
| Programmability | Standard NETCONF interface | ||
| Ansible-based automatic configuration and open-source module release | |||
Product Features
-
High Compatibility: Supports a wide range of interface types and protocols for seamless integration with existing data center infrastructure.
-
Non-Blocking Architecture: Ensures line-rate forwarding across all ports with zero packet loss under full load.
-
High Reliability: Features NSR (Non-Stop Routing) and ISSU (In-Service Software Upgrade) for uninterrupted service during upgrades and maintenance.
-
Intelligent QoS: Advanced Quality of Service capabilities for fine-grained traffic control and service differentiation.
-
IPv6 Support: Full support for IPv6 and IPv4/IPv6 dual-stack environments, ensuring future-proof network design.
Product Application Introduction
The Huawei CE16808 Switch is ideal for deployment in core data center nodes, large-scale cloud platforms, and high-performance computing environments. Its massive switching capacity and low latency make it perfect for handling east-west traffic in modern data centers, supporting applications such as AI training, big data analytics, and distributed storage.
In service provider networks, the CE16808 can be used as a core aggregation switch, enabling high-speed interconnection between data centers and metro networks. Its support for hierarchical deployment and seamless integration with other CloudEngine series switches allows for flexible, scalable network architectures that can adapt to evolving business needs.
Product Advantages Summary
The Huawei CE16808 Switch offers a modular design that supports flexible configuration and future expansion, protecting your investment over time. Its energy-efficient components and intelligent power management reduce operational costs, while its high scalability ensures it can grow with your network. With support for advanced features like SR-MPLS, EVPN, and intent-driven network automation, the CE16808 is built to support the evolution toward autonomous driving networks.
Huawei CE16808 Switch Ordering Info
| Basic Configuration | |
| CE16804-AH | CE16804 AC/HVDC assembly chassis |
| CE16804-DC | CE16804 DC assembly chassis |
| CE16804A-B00 | CE16804 AC Bundle0 (AC/HVDC Assembly Chassis, 2* MPUD,3*SFU04F,2*3000W AC & HVDC, full Fans) |
| CE16804A-B01 | CE16804 AC Bundle1 (AC/HVDC Assembly Chassis, 2* MPUD,4*SFU04F,4*3000W AC & HVDC, full Fans) |
| CE16804A-B02 | CE16804 AC Bundle2 (AC/HVDC Assembly Chassis, 2* MPUD,5*SFU04G,4*3000W AC & HVDC, full Fans) |
| CE16808-AH | CE16808 AC/HVDC assembly chassis |
| CE16808-DC | CE16808 DC assembly chassis |
| CE16808A-B00 | CE16808 AC Bundle0 (AC/HVDC Assembly Chassis, 2* MPUD,3*SFU08F,2*3000W AC & HVDC, full Fans) |
| CE16808A-B01 | CE16808 AC Bundle1 (AC/HVDC Assembly Chassis, 2* MPUD,4*SFU08F,4*3000W AC & HVDC, full Fans) |
| CE16808A-B02 | CE16808 AC Bundle2 (AC/HVDC Assembly Chassis, 2* MPUD,5*SFU08G,4*3000W AC & HVDC, full Fans) |
| CE16816-AH | CE16816 AC/HVDC assembly chassis |
| CE16816-DC | CE16816 DC assembly chassis |
| Main Processing Unit | |
| CE-MPUD-HALF | CE16800 Main Processing Unit D (half-width) |
| CE-MPUD-FULL | CE16800 Main Processing Unit D (full-width) |
| Switch Fabric Unit | |
| CE-SFU04F-G | CE16804 Switch Fabric Unit F |
| CE-SFU04G-G | CE16804 Switch Fabric Unit G |
| CE-SFU08F-G | CE16808 Switch Fabric Unit F |
| CE-SFU08G-G | CE16808 Switch Fabric Unit G |
| CE-SFU16F-G | CE16816 Switch Fabric Unit F |
| CE-SFU16G-G | CE16816 Switch Fabric Unit G |
| 10GBASE-X Interface Card | |
| CEL48XSFD-G | 48-port 10GE interface card (FD-G, SFP+) |
| 40GE Interface Card | |
| CEL24LQFD-G | 24-port 40GE interface card (FD-G, QSFP+) |
| CEL36LQFD-G | 36-port 40GE interface card (FD-G, QSFP+) |
| 100GE Interface Card | |
| CEL18CQFD-G | 18-port 100GE interface card (FD-G, QSFP28) |
| CEL36CQFD-G | 36-port 100GE interface card (FD-G, QSFP28) |
| Power | |
| PAH-3000WA | 3000W Dual Inputs AC&HVDC Power Module |
| PDC-2200WC | PSU-PDC-2200WC-PM2200W DC Power Supply |
| Software | |
| N1-CE168LIC-CFMM | N1-CloudFabric Management SW License for CloudEngine 16800 |
| N1-CE168CFMM-SnS1Y | N1-CloudFabric Management SW License for CloudEngine 16800-SnS-1 Year |
| N1-CE168LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 16800 (N1-CE168LIC-CFFD software is applicable to single DC scenarios, includes basic L2/L3 functions and features such as VXLAN, EVPN, Telemetry and Agile Controller-DCN) |
| N1-CE168CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 16800-SnS-1 Year |
| N1-CE168LIC-CFAD | N1CE168LIC-CFFD software package and NSH function) N1-CloudFabric Advanced SW License for CloudEngine 16800 (N1-CE168LIC-CFAD software is applicable to multiple DC scenarios, includes all the functions of the |
| N1-CE168CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 16800-SnS-1 Year |
