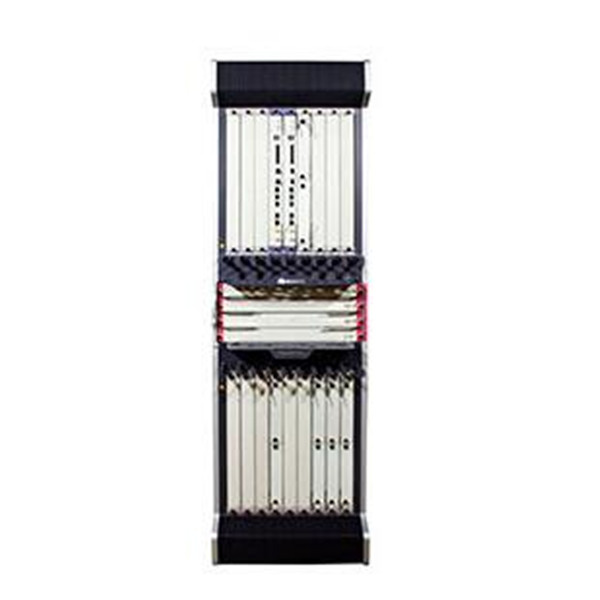

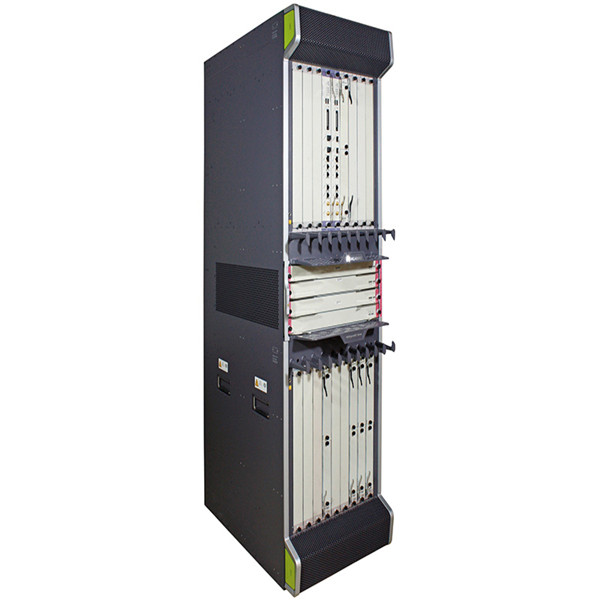

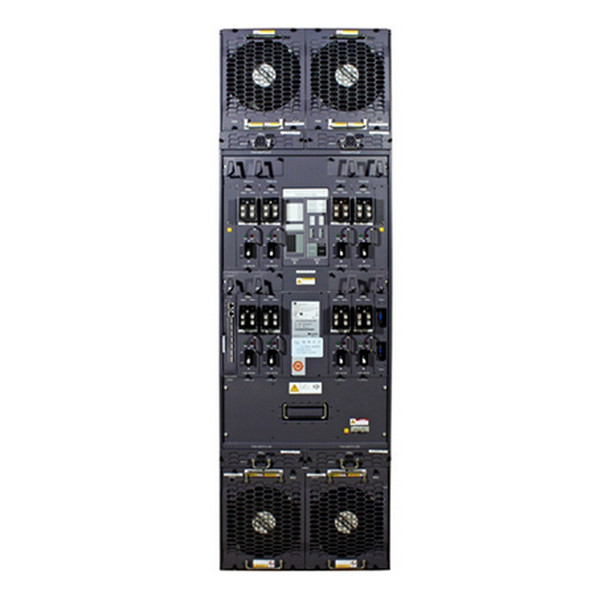

Huawei NE40E-X16A
Description
Product Overview
The Huawei Huawei NE40E-X16A isn’t just a router—it’s the beating heart of hyperscale networks. Engineered for carriers and enterprises demanding zero-compromise performance, this 40U powerhouse leverages Huawei’s 400G-ready silicon and SRv6 technology to future-proof critical infrastructure. With 316.5 Tbps switching capacity and 76,800 Mpps forwarding performance, it handles cloud RAN, financial transactions, and 5G core traffic while slicing latency to sub-millisecond precision. Unlike traditional routers, the X16A integrates MPLS-TE/SRv6 hybrid forwarding, enabling “IP hard pipes” that mimic SDH reliability with IP agility—perfect for healthcare, smart grids, or stock exchanges where packet loss is non-negotiable
Detailed Specifications & Comparison
| Feature | X16A | X16 | X8A | X8 | X3A | X3 |
|---|---|---|---|---|---|---|
| Max. Switching Capacity | 316.5 Tbps | 231.42 Tbps | 168.8 Tbps | 115.71 Tbps | 120.03 Tbps | 75.94 Tbps |
| Forwarding Performance | 76,800 Mpps | 48,000 Mpps | 38,400 Mpps | 24,000 Mpps | 11,700 Mpps | 9,000 Mpps |
| Slot Bandwidth | 2 Tbps/slot | 2 Tbps/slot | 2 Tbps/slot | 2 Tbps/slot | 400 Gbps/slot | 240 Gbps/slot |
| Service Slots | 16 | 16 | 8 | 8 | 3 | 3 |
| Subcard Capacity | Up to 64 | Up to 64 | Up to 32 | Up to 32 | Up to 12 | Up to 12 |
| Redundancy | 3+1 fabric backup | 3+1 fabric backup | 3+1 fabric backup | 2+1 fabric backup | 1+1 integrated | 1+1 integrated |
| Dimensions (W×D×H) | 442×650×1778mm (40U) | 442×650×1778mm (40U) | 442×650×930mm (21U) | 442×650×930mm (21U) | 442×710×264mm (6U) | 442×710×264mm (6U) |
| Typical Power (Full) | ~9,040 W | ~7,970 W | ~4,770 W | ~4,770 W | ~1,120 W | ~1,120 W |
Notes: X16A’s 76.8K Mpps performance doubles X16’s throughput using Huawei Solar NPU. X3A supports 400G slots vs X3’s 240G limit
Strategic Procurement Guidance
Choose X16A if you need:
- Hyperscale Core Resilience
- Deploy in Tier-IV data centers or telecom backbone nodes demanding 400G readiness and 99.999% uptime. Its 3+1 fabric redundancy and NSR/NSF protocols prevent micro-outages during upgrades
.
- Deploy in Tier-IV data centers or telecom backbone nodes demanding 400G readiness and 99.999% uptime. Its 3+1 fabric redundancy and NSR/NSF protocols prevent micro-outages during upgrades
- SRv6-Powered Simplification
- Replace MPLS/VPLS spaghetti with SRv6’s “one protocol” architecture—cutting OPEX by 40% while enabling network slicing for 5G/cloud
- Replace MPLS/VPLS spaghetti with SRv6’s “one protocol” architecture—cutting OPEX by 40% while enabling network slicing for 5G/cloud
- Future-Proof Density
- Host up to 64×100GE subcards in one chassis, ideal for AI cluster interconnect or content-heavy CDN hubs
Scale Down When:
- Host up to 64×100GE subcards in one chassis, ideal for AI cluster interconnect or content-heavy CDN hubs
- X8A/X8: Ideal for metro aggregation or large campus cores (≤20K users). X8A adds 38.4K Mpps throughput vs X8’s 24K Mpps
.
- X3A/X3: Perfect for edge DCs or critical branch hubs. X3A’s 400G slots outperform X3’s 240G limit for video surveillance/IoT gateways
Why X16A? The Unspoken Edge
Imagine a router that doesn’t just move data—but orchestrates it. The X16A is Huawei’s answer to the cloud-era paradox: demanding more bandwidth while slashing complexity. Here’s why it’s your silent partner:
- 400G in Your Back Pocket
Today’s 100GE ports? Ready. Tomorrow’s 400G silicon? Slot-compatible without forklift upgrades. Huawei’s “pay-as-you-grow” ethos lives here - Carrier DNA, Enterprise Agility
Deploy IP hard pipes for hospital PACS imaging or grid SCADA systems—guaranteeing SLA like SDH, without the rigidity - Zero-Touch Intelligence
With embedded NetStream analytics and uTraffic visibility, it spots congestion before users complain. Think “self-healing” for financial trading floorsBOM Number Order Name Description 02350AQQ CR5P16BASD76 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G),7 DC Power,4 Fan Tray, without Software Charge and Document) 02350AQR CR5P16BASA76 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G), 10 AC Power,4 Fan Tray, without Software Charge and Document) 02351ECJ CR5P16BASD7B NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G),10 HVDC Power,4 Fan Tray, without Software Charge and Document) 02351PGK CR5P16BASD7F NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G),7 DC Power,4 Fan Tray, without Software Charge and Document) 02351PGM CR5P16BASA7F NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G), 10 AC Power,4 Fan Tray, without Software Charge and Document) 02351PGN CR5P16BASH71 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G),10 HVDC Power,4 Fan Tray, without Software Charge and Document) 02350AUC CR5P16BASD77 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1T), 10 DC Power,6 Fan Tray,without Software Charge and Document) 02350AUD CR5P16BASA77 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1T), 14 AC Power,6 Fan Tray, without Software Charge and Document) 02351ECK CR5P16BASD7C NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1T), 14 HVDC Power,6 Fan Tray,without Software Charge and Document) 02351PGU CR5P16BASD7G NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(2T), 13 DC Power, 6 Fan Tray, without Software Charge and Document) 02351PGV CR5P16BASA7G NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(2T), 16 AC Power, 6 Fan Tray, without Software Charge and Document) 02351PGW CR5P16BASH72 NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(2T), 16 HVDC Power, 6 Fan Tray, without Software Charge and Document) 02351TRN CR5P16UPGG70 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 7 DC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 02351TRP CR5P16UPGG71 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 6 AC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 02351TRQ CR5P16UPGG72 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 6 HVDC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 02351TRU CR5P16UPGT70 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 4 DC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 02351TRW CR5P16UPGT71 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 2 AC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 02351TRX CR5P16UPGT72 NE40E-X16A 2T Upgrade Configuration (Including 2 MPUs, 4 SFUs(2T), 2 HVDC Power, 6 Fan Tray, 2 PMU, 1 Noise Reduction Module) 2359914 CR5B0BKP1673 NE40E-X16A Integrated DC Chassis Components(Including 4 Fan Tray) 2359915 CR5B0BKP1674 NE40E-X16A Integrated AC Chassis Components(Including 4 Fan Tray) 02351CBD CR5B0BKP1675 NE40E-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) 02351PJP CR5B0BKP1676 NE40E-X16A Integrated DC Chassis Components(2T,Including 6 Fan Tray) 02351PJQ CR5B0BKP1677 NE40E-X16A Integrated AC Chassis Components(2T,Including 6 Fan Tray) 02351PJR CR5B0BKP1678 NE40E-X16A Integrated HVDC Chassis Components(2T,Including 6 Fan Tray) 3057366 CR5DMPUX8670 Main Processing Unit B6 3057244 CR5D0MPUB571 Main Processing Unit B5(16G Memory) 3055780 CR5DSFUIM07B 480Gbps Switch Fabric Unit B(SFUI-480-B) 3057824 CR5DSFUIM17B 480Gbps Switch Fabric Unit B(SFUI-480-B) 3056091 CR5DSFUIU07B 1Tbps Switch Fabric Unit B(SFUI-1T-B) 3057825 CR5DSFUIT27B 2Tbps Switch Fabric Unit B(SFUI-2T-B) Huawei NE40E-X16A Router Product Applications
In essence: The X16A isn’t hardware. It’s digital pulse of your most critical infrastructure—where every terabit, nanosecond, and watt is optimized for what’s next. Ready to transform bandwidth into brilliance? X16A delivers. Now.
