Equipamentos de rede e comunicação premium da Huawei
A Huawei da China também é a Huawei do mundo.

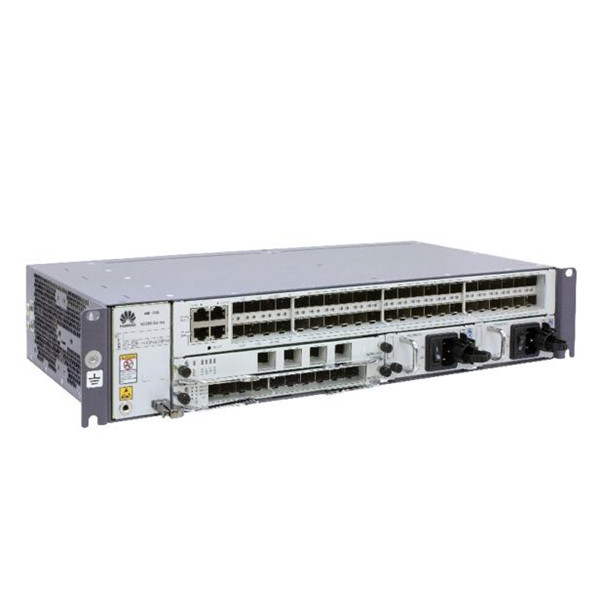

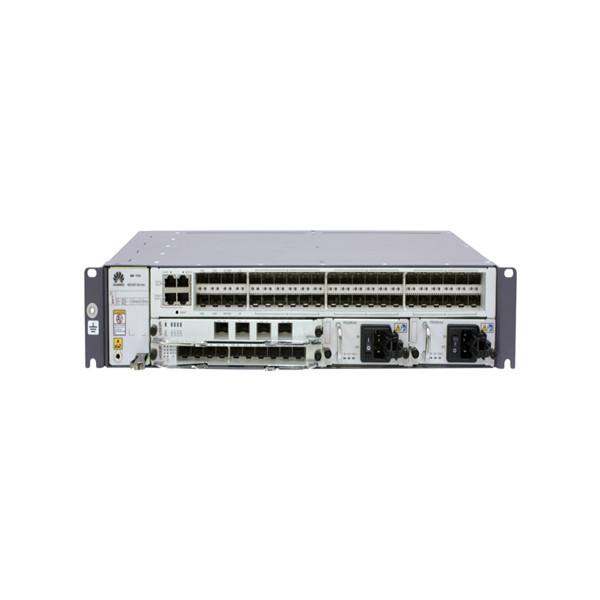

Roteador Huawei NetEngine 8000 M6
Descrição
Huawei NetEngine 8000 M6 Router provides a wide range of features with strong service processing capabilities to meet the service requirements of various scenarios, such as IP/MPLS transport networks, vertical networks, DCI, and campus and DC network egress.
| Capacidade de comutação | Forwarding Performance | Max. Capacity of a Board | Capacity Density (G/U) | IPU | SFU | Processing Board/Subcard | Power Supply Module | Fan Module | Typical Power Consumption |
| 320 Gbit/s | 72 Mpps | 50 Gbit/s | 53 | 2, 1+1 | 2, 1+1 (integrated) | 6(DC) 4(AC) | 2, 1+1 | 2, 1+1 | 475 W |
Huawei NetEngine 8000 M6 Router Product Overview
Huawei NetEngine 8000 M6 Router offers support for IPv6 static routes and various IPv6 routing protocols, including OSPFv3, IS-ISv6, and BGP4+. In addition, a large number of IPv6 FIB entries are supported, as well as IPv6 terminal access, IPv6 ACLs, and IPv6 policy-based routing, laying the foundation for a smooth IPv4 to IPv6 transition.
NetEngine 8000 series routers include the NetEngine 8000 X8, NetEngine 8000 X4, NetEngine 8000 M14, NetEngine 8000 M8, NetEngine 8000 M1A and NetEngine 8000 F1A , each of which are applicable to networks of different scales.
Huawei NetEngine 8000 M6 Router Product Specifications
| Parâmetro | NetEngine 8000 X8 | NetEngine 8000 X4 | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M1A | NetEngine 8000 F1A |
| Capacidade de comutação | 83.78 Tbit/s | 41.89 Tbit/s | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 352 Gbit/s | 2.4 Tbit/s |
| Forwarding Performance | 14,496 Mpps | 7248 Mpps | 906 Mpps | 453 Mpps | 72 Mpps | 72 Mpps | 453 Mpps |
| Max. Capacity of a Board | 4 Tbit/s | 4 Tbit/s | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | Fixed box | Fixed box |
| Capacity Density (G/U) | 2025 | 1633 | 400 | 400 | 53 | 176 | 1200 |
| IPU | 2, 1+1 | 2, 1+1 | 2, 1+1 | 2, 1+1 | 2, 1+1 | Fixed box | Fixed box |
| SFU | 8, 7+1 | 8, 7+1 | 2, 1+1 (integrated) | 2, 1+1 (integrated) | 2, 1+1 (integrated) | Fixed box | Fixed box |
| Processing Board/Subcard | 8 | 4 | 14(DC) 10(AC) | 8(DC) 6(AC) | 6(DC) 4(AC) | Fixed box | Fixed box |
| Power Supply Module | Max 10, N+1 | Max 6, N+1 | 2, 1+1 (DC) 4, 2+2 (AC) | 2, 1+1 | 2, 1+1 | 2, 1+1 (DC) | 2, 1+1 |
| Fan Module | 12, 11+1 | 6, 5+1 | 4, 3+1 | 2, 1+1 | 2, 1+1 | 3 (integrated) | 4, 3+1 |
| Dimensions (H x W x D) | 702.3 x 442 x 861.4 mm (15.8 U) | 435.6 x 442 x 861.4 mm (9.8 U) | 222 x 442 x 220 mm (5 U) | 132.6 x 442 x 220 mm (3 U) | 88.9 x 442 x 220 mm (2 U) | 44.45 x 442 x 220 mm (1 U) | 43.6 x 442 x 420 mm (1 U) |
| Typical Power Consumption | 11,017 W | 5913 W | 1223 W | 530 W | 475 W | 80 W | 350 W |
| Weight (With Full Configuration) | 296.6 kg | 186.2 kg | 27.4 kg | 16.5 kg | 3.52 kg | 3.4 kg | 7.25 kg |
Huawei NetEngine 8000 M6 Router Product Feature
- Device-level reliability:
Redundancy for key components is facilitated, which support both hot-swap and hot backup. Non-stop routing (NSR) and non-stop forwarding (NSF) technologies ensure uninterrupted service transmission.
- Network-level reliability:
Huawei NetEngine 8000 M6 Router utilizes a number of technologies to provide network-level reliability. These include: IP fast reroute (FRR), Label Distribution Protocol (LDP) FRR, VPN FRR, TE FRR, MPLS hot standby, fast route convergence for IGP, BGP, and multicast, Virtual Router Redundancy Protocol (VRRP), trunk load balancing and active/standby backup, BFD, Ethernet OAM, and damping techniques for routing protocols, ports, and VLANs.
- Service-level reliability:
Huawei NetEngine 8000 M6 Router provides extensive service-level redundancy with no service interruption by leveraging VPN FRR, E-VRRP, VLL FRR, Ethernet OAM, PW redundancy, and E-Trunk for L2VPNs and L3VPNs.
O NetEngine 8000 M6 is a cornerstone in Huawei’s routing portfolio, delivering unmatched performance and flexibility for modern network demands. Whether deploying 5G infrastructure or expanding enterprise services, this router ensures reliable, intelligent, and scalable connectivity.
