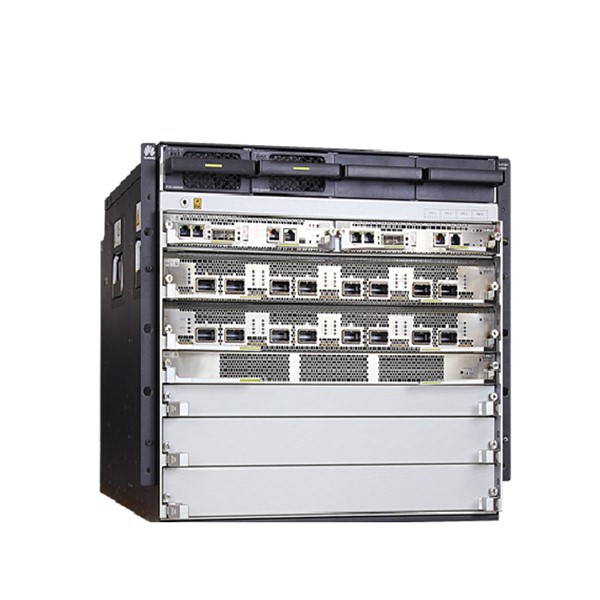

Huawei CE12804S Switch High-Performance Compact Core Switch

Обзор продукта

Huawei CE12804S Switch uses an advanced hardware architecture design with Up to 2 MPUs (Main Processing Unit), Up to 4 LPUs,, Up to 2 SFUs (Switch Fabric Unit), Up to 4 power modules and Up to 3 fan modules. This provides as much as 178Tbit/s (scalable to 1032 Tbps) switching capacity and has up to 576*100GE, 576*40GE, 2,304*25GE, or 2,304*10GE line-rate ports.

Huawei CE12804S Switch is the next-generation high-performance core switch for data center and high-end campus networks. This model provides flexibility, virtualization, agility and high performance based on stable, reliable and secure high-performance L2/L3 layer switching services. Quality network.

Huawei CE12804S Switch provides 367/1032Tbps large switching capacity; single device supports 576 100GE, 576 40GE, 2304 25GE or 2304 10GE full line speed interfaces. The CloudEngine 12800 Series supports industrial-grade reliability, as well as strict front and rear air duct design, and supports comprehensive virtualization capabilities and rich data center features. In addition, the CloudEngine 12800 series uses a variety of green energy-saving innovations to significantly reduce equipment energy consumption.

Huawei CE12804S Switch Product Specifications

Huawei CE12804S Switch Product Features

Next-generation core engine, superior performance

Huawei CloudEngine 12804S Switch supports a maximum of 367Tbps/1032Tbps switching capacity to meet the sustainable development requirements of cloud computing data centers, and to build stable network architecture for the next decade.

Comprehensive virtualization capabilities, simple and efficient network

Huawei CloudEngine 12804S Switch provides 1:16 device virtualization capability through VS (Virtual System) technology, which virtualizes one physical device into multiple independent logical devices to meet multiple service areas (such as production areas, office areas, DMZ areas, etc.) or more. Tenants share the needs of core switches.

Open programmable, agile deployment and operation and maintenance

Huawei CloudEngine 12804S Switch adopts the next-generation VRP8 operating system and implements programmable programming of the device control plane through the OPS module embedded in the VRP8. OPS provides a rich Open API interface that can be deeply integrated by mainstream cloud platforms (including commercial cloud platforms and open source cloud platforms) and third-party controllers to support flexible customization and automated management of services to the network.

Product Application Introduction

Product Advantages Summary

Каждая модель серии CloudEngine 12800 разработана для удовлетворения самых строгих сетевых требований, гарантируя, что вы сможете создать отказоустойчивую, высокопроизводительную сеть центра обработки данных, масштабируемую вместе с вашим бизнесом.
