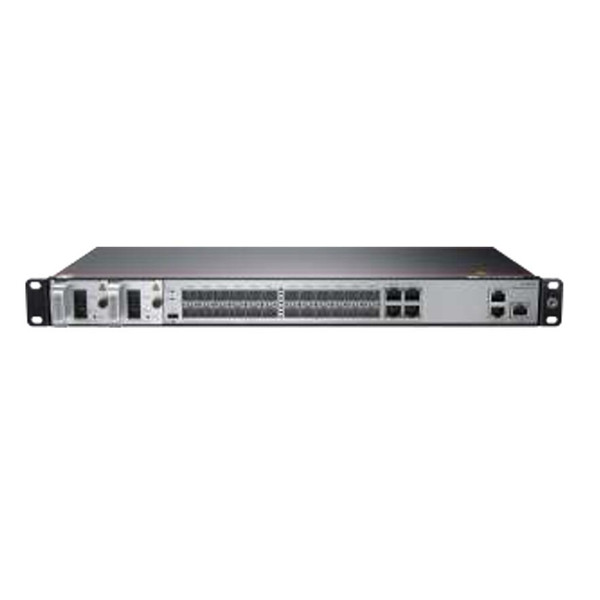

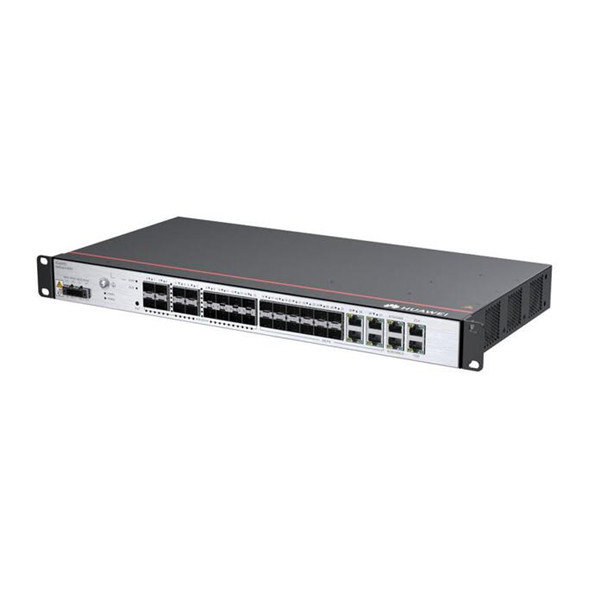

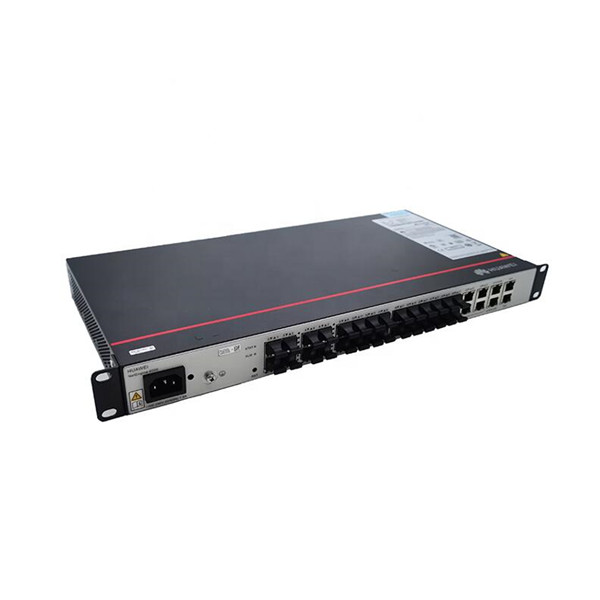

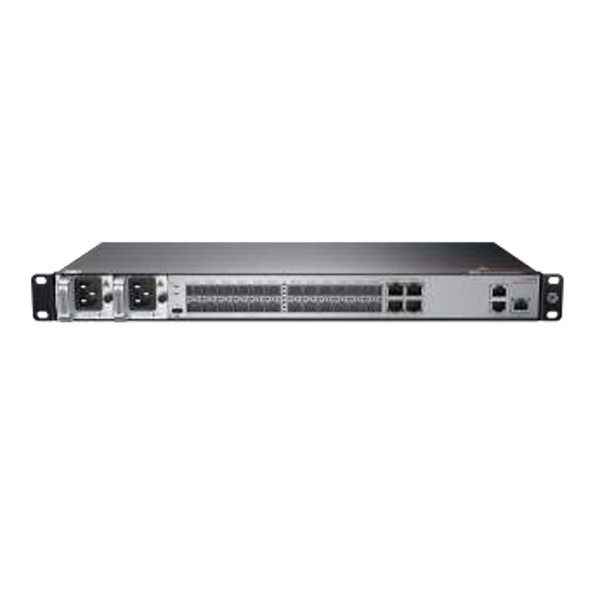

Маршрутизатор Huawei NetEngine 8000 M1C
Описание
Huawei NetEngine 8000 M1C Router is a high-density compact router designed for the cloud era with 344 Gbit/s 72 Mpps and fixed-configuration router does not support flexible cards.
Huawei NetEngine 8000 M1C Router Product Overview
The router features with 1U height, 220 mm depth, and supports up to 172G port capacity. The compact design saves precious space resources. In addition, the product supports flexible service access of 10GE and GE (optical and electrical ports) and supports features such as SRv6, EVPN, Telemetry, and 1588v2 high precision clock, which is the best choice for multi-service high-density bearer in the future cloud era.
Using ultra-broadband pipes to construct simplified networks, and Segment Routing (SR) and Segment Routing over IPv6 (SRv6) protocols to establish intelligent connections, Huawei NetEngine 8000 M1C combines with Huawei’s next generation Network Cloud Engine (NCE) to implement full-lifecycle automation and proactive Operations and Maintenance (O&M). An intent-driven approach frees customers from unnecessary constraints, unleashing network potential.
Product Features
-
Неблокируемая архитектура: Ensures high throughput and low latency for seamless data transmission.
-
Высокая надежность: Features Non-Stop Routing (NSR) and In-Service Software Upgrade (ISSU) for continuous network operation.
-
Advanced QoS: Provides intelligent traffic management to prioritize critical applications and ensure optimal performance.
-
IPv6 Support: Fully supports IPv6, enabling future-proof network deployments and seamless transition.
-
Carrier-Grade Compatibility: Designed to integrate seamlessly with existing carrier networks and other devices in the NetEngine series.
Product Applications
The Huawei NetEngine 8000 M1C Router is ideal for deployment in core network nodes, where it can handle large volumes of traffic with high reliability and efficiency. In large data centers, it serves as a critical interconnect solution, ensuring robust and scalable connectivity. For service providers, the NetEngine 8000 M1C offers a versatile platform that can be deployed at various network layers, working in synergy with other devices in the series to provide comprehensive network solutions.
Product Advantage Summary
The Huawei NetEngine 8000 M1C Router stands out with its modular design, which not only ensures scalability but also protects customer investments. Its energy-efficient architecture reduces operational costs while maintaining high performance. The router is future-ready, supporting next-generation technologies and network evolutions, making it a reliable choice for building modern, resilient networks.
| Параметры | NetEngine 8000 M1A | NetEngine 8000 M1C | NetEngine 8000 M1D-B | NetEngine 8000 F1A | NetEngine 8000 F8 |
| Коммутационная способность | 352 Gbit/s | 344 Gbit/s | 368 Gbps | 2.4 Tbit/s | 4 Tbps |
| Производительность пересылки | 72 Mpps | 72 Mpps | 276 Mpps | 453 Mpps | 906 Mpps |
| Maximum Board Capability | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router | Fixed-configuration router does not support flexible cards | 400G, up to 800G |
| Capacity Density (G/U) | 176 | 172 | 184 | 1200 | 492 |
| Main Control Board | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router | Fixed-configuration router does not support flexible cards | 1:01 |
| SFU | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router | Fixed-configuration router does not support flexible cards | 1:01 |
| Line Card | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards | 8 |
| Модуль питания | 2, 1+1 (DC) | 2, 1+1 | 2, 1+1 | 2, 1+1 | DC: up to 5+1; [2T bundle] 2+1; |
| AC: up to 3+3; [2T bundle] 2+2; | |||||
| Fan Module | 3 (integrated) | 2 (integrated) | 3, 2+1 | 4, 3+1 | 1+1 up to 2+1 |
| Размеры (В x Ш x Г) | 44.45 x 442 x 220 mm (1 U) | 44.45 x 442 x 220 mm (1 U) | 44.5 mm (1U) x 442 mm x 220 mm | 43.6 x 442 x 420 mm (1 U) | 575 mm(13U) x 442 mm x 482.8 mm |
| Typical Power Consumption | 75 W | 89.21 W | 110 W (estimated) | 350 W | 1604 W (estimated) |
| Вес в полной конфигурации | 3.4 kg | 3.9 kg | 4.1 kg (estimated) | 7.25 kg | 2T bundle: 120.5 kg |
Huawei NetEngine 8000 M1C Router Product Features
Compact Size High density GE Ports
• 1 U, 220 mm, 172 Gbps
• Max 16*10GE / GE
Programmable Protocol Simpli fi cation
• SRv6/EVPN, uni fi ed protocols
• Programmable NP, smooth upgrade
Green Industrial Design
• 89 W, low power consumption
• 40℃ to +65℃, industrial wide temperature design
Huawei NetEngine 8000 M1C Router Ordering Info
| 02354ARK | CR8PM1CBASC0 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*DC | ||
| Power,without Software and Document) | ||
| 02354ARL | CR8PM1CBASC1 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*AC | ||
| Power,without Software and Document) | ||
| 02354ARP | CR8PM1CBASC2 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*DC | ||
| Power,without Software and Document) | ||
| 02354ARQ | CR8PM1CBASC3 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*AC | ||
| Power,without Software and Document) | ||
| 02354ART | CR8PM1CBASC4 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(16*10GE + | ||
| 12*GE),2*DC Power,without Software and | ||
| Document) | ||
| 02354ARU | CR8PM1CBASC5 | NetEngine 8000 M1C Basic Configuration (Includes |
| M1C Chassis, Fixed Interface(16*10GE + | ||
| 12*GE),2*AC Power,without Software and | ||
| Document) |
The Huawei NetEngine 8000 M1C Router is a versatile and powerful solution for modern network infrastructures. Its high-density port configuration, advanced routing capabilities, and carrier-grade reliability make it an ideal choice for service providers and large enterprises looking to build scalable, resilient, and future-proof networks.
