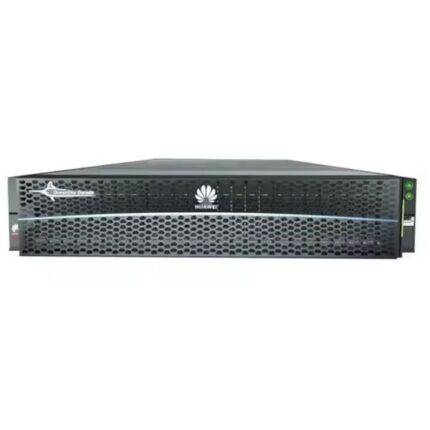

Huawei NetEngine 8000 X8 High-Performance Intelligent Router
Обзор продукта
The Huawei NetEngine 8000 X8 Router is a high-performance intelligent router designed for metro core, aggregation, and data center gateway scenarios. It supports SRv6 for end-to-end intelligent connections, ultra-low power consumption, and full-service convergence, enabling operators to build simplified, future-ready networks.
Huawei NetEngine 8000 Series is available in a variety of form factors, including a large chassis, a compact box equipped with a card, and a fixed box that applies to core networks, aggregation and access networks.
| Коммутационная способность | Производительность пересылки | Max. Capacity of a Board | Capacity Density (G/U) | IPU | SFU | Processing Board/Subcard | Power Supply Module | Fan Module | Typical Power Consumption |
| 41.89 Tbit/s | 7248 Mpps | 4 Tbit/s | 1633 | 2, 1+1 | 8, 7+1 | 4 | Max 6, N+1 | 6, 5+1 | 5913 W |
gine 8000 X8 Router Product Specifications
| Параметр | NetEngine 8000 X8 | NetEngine 8000 X4 | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M1A | NetEngine 8000 F1A |
| Коммутационная способность | 83.78 Tbit/s | 41.89 Tbit/s | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 352 Gbit/s | 2.4 Tbit/s |
| Производительность пересылки | 14,496 Mpps | 7248 Mpps | 906 Mpps | 453 Mpps | 72 Mpps | 72 Mpps | 453 Mpps |
| Max. Capacity of a Board | 4 Tbit/s | 4 Tbit/s | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | Fixed box | Fixed box |
| Capacity Density (G/U) | 2025 | 1633 | 400 | 400 | 53 | 176 | 1200 |
| IPU | 2, 1+1 | 2, 1+1 | 2, 1+1 | 2, 1+1 | 2, 1+1 | Fixed box | Fixed box |
| SFU | 8, 7+1 | 8, 7+1 | 2, 1+1 (integrated) | 2, 1+1 (integrated) | 2, 1+1 (integrated) | Fixed box | Fixed box |
| Processing Board/Subcard | 8 | 4 | 14(DC) 10(AC) | 8(DC) 6(AC) | 6(DC) 4(AC) | Fixed box | Fixed box |
| Power Supply Module | Max 10, N+1 | Max 6, N+1 | 2, 1+1 (DC) 4, 2+2 (AC) | 2, 1+1 | 2, 1+1 | 2, 1+1 (DC) | 2, 1+1 |
| Fan Module | 12, 11+1 | 6, 5+1 | 4, 3+1 | 2, 1+1 | 2, 1+1 | 3 (integrated) | 4, 3+1 |
| Размеры (В x Ш x Г) | 702.3 x 442 x 861.4 mm (15.8 U) | 435.6 x 442 x 861.4 mm (9.8 U) | 222 x 442 x 220 mm (5 U) | 132.6 x 442 x 220 mm (3 U) | 88.9 x 442 x 220 mm (2 U) | 44.45 x 442 x 220 mm (1 U) | 43.6 x 442 x 420 mm (1 U) |
| Typical Power Consumption | 11,017 W | 5913 W | 1223 W | 530 W | 475 W | 80 W | 350 W |
| Weight (With Full Configuration) | 296.6 kg | 186.2 kg | 27.4 kg | 16.5 kg | 3.52 kg | 3.4 kg | 7.25 kg |
Key Features
- Universal Compatibility: Supports IP/MPLS, SRv6, and SDN for seamless multi-service integration.
- Неблокируемая архитектура: Enables 14.4Tbit/s per slot electrical cross-connect for scalable traffic handling.
- Высокая надежность: Features 12,000km submarine transmission without regeneration.
- Smart QoS: Prioritizes latency-sensitive applications with dynamic bandwidth allocation.
- IPv6 Support: Ensures readiness for next-generation network protocols.
Product Applications
The Huawei NetEngine 8000 X8 Router is ideal for metro core networks, data center gateways, и international gateway scenarios. Its modular design allows hierarchical deployment, integrating with NetEngine 8000 X4/X16 и 8000E to build scalable, intelligent solutions. For example, it can optimize DCI efficiency for cloud providers or support low-latency 5G backhaul.
Product Advantages
The Huawei NetEngine 8000 X8 Router combines modular flexibility with energy-efficient design, ensuring long-term investment protection. Its 14.4Tbit/s per slot capacity and SRv6 support simplify network upgrades, while advanced power management reduces operational costs. The device’s compatibility with legacy and next-gen technologies future-proofs infrastructure for evolving demands.
The Huawei NetEngine 8000 X8 Router is a cornerstone in Huawei’s routing portfolio, delivering unmatched performance and flexibility for modern network demands. Whether deploying 5G infrastructure or expanding enterprise services, this router ensures reliable, intelligent, and scalable connectivity.
