Huawei OptiX OSN 1800 II Enhanced High-Capacity Multi-Service OTN Platform

Huawei OSN 1800 II Enhanced is a new generation of packet-enhanced multi-service optical transport platform. The high integration level fills the needs of metro equipment and solve the problem of insufficient optical fiber resources below the metropolitan area network, for finance, media assets, and government , Energy, Education, etc. provide low-cost and efficient business transmission solutions.

Huawei OSN 1800 II Enhanced Product Overview

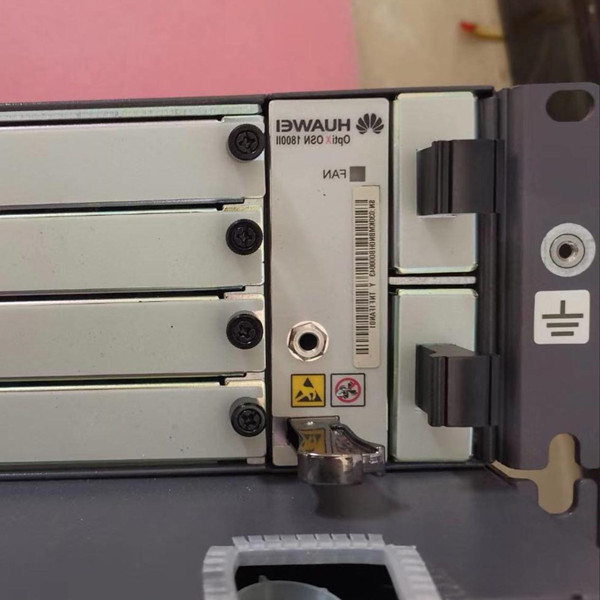

Huawei OSN 1800 II Enhanced provides eight slots for boards. Compared with the OptiX OSN 1800 I chassis, the OptiX OSN 1800 II chassis can access twice of the service volume accessed by the OptiX OSN 1800 II chassis.

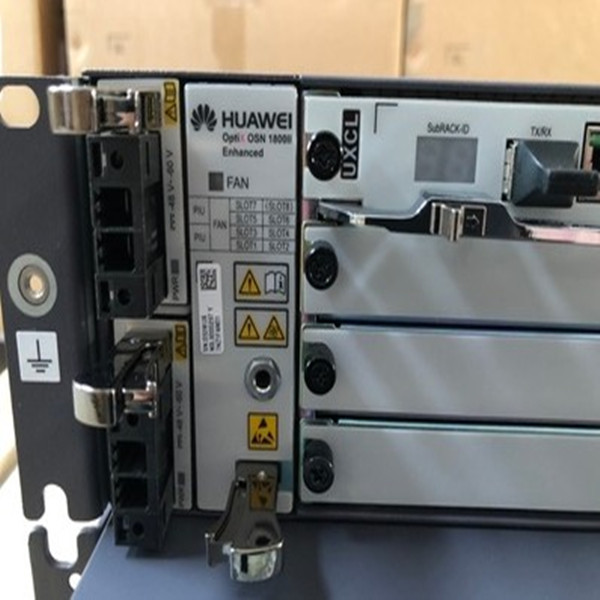

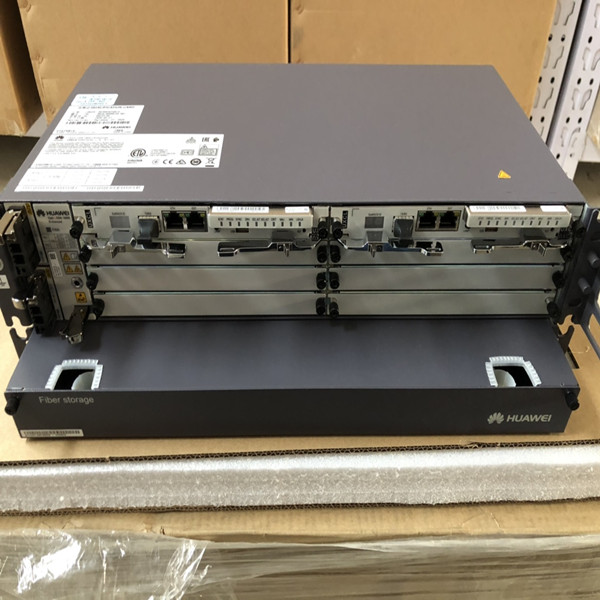

An OptiX OSN 1800 II chassis can be an ordinary chassis or a chassis integrated with a fiber management tray (FMT). Both an ordinary chassis and a chassis integrated with an FMT can be a DC or AC power-supply chassis. A DC power-supply chassis uses the PIU board and an AC power-supply chassis uses the APIU board. On the AC power-supply chassis, the APIU board occupies two service slots and the slots for housing the PIU boards are installed with two filler panels.

Huawei OSN 1800 II Enhanced Product Specifications

Huawei OSN 1800 II Enhanced Product Features

• Access of Abundant Services: The OptiX OSN 1800 supports all types of services with the rate of 1.5 Mbit/s to 10 Gbit/s.
• OTN Encapsulation: All services are encapsulated as the OTN frames for unified transmission.
• EDFA: The OptiX OSN 1800 DWDM system uses advanced Erbium-doped fiber amplifier (EDFA) technology for long haul transmission with no regenerator.
• CWDM and DWDM Hybrid Network: In the initial network construction, the CWDM system is used to make the services be available quickly. With the increasing demand of broadband services and service traffic, the system can be smoothly upgraded to the DWDM system.
• Any ADM: The OptiX OSN 1800 series support the cross-connect function of services with rate lower than 1.25 Gbit/s.
• Layer 2 Switching: The OptiX OSN 1800 series support VLAN- and stack VLAN-based Layer 2 switching and Layer 2 convergence of GE services to 10GE services.
• ODUflex: By using this technology, users can flexibly configure ODUk based on the service capacity, therefore fully using the line bandwidth.

Huawei OSN 1800 II Enhanced Product and Related Board

The OptiX OSN 1800 II Enhanced is a cornerstone in Huawei’s optical transport portfolio, delivering unmatched performance and flexibility for modern network demands. Whether deploying 5G infrastructure or expanding enterprise services, this router ensures reliable, intelligent, and scalable connectivity.
