华为NE9000-8路由器
描述
Huawei NE9000-8 High-Performance Converged Core Router

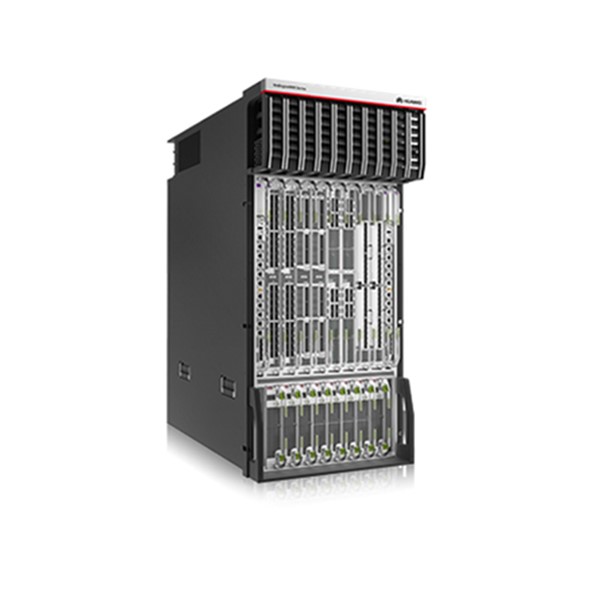

Huawei NE9000-8 Router Product Overview
这 Huawei NE9000-8 is a high-performance converged core router designed for IP/MPLS backbone, DCI, and large-scale enterprise networks. It supports flexible capacity scaling, integrated intelligent functions, and seamless multi-service delivery. Ideal for operators and enterprises requiring robust, future-ready network infrastructure.
Huawei NE9000-8 Router is suited for deployment on the small-scale backbone, metro edge, or DCI networks. The router has 8 slots and a capacity of 32Tbit/s, which can be upgraded to 64Tbit/s in the future.
The NE9000 series uses a programmable solar NP chipset developed by Huawei and uses the industry’s high-speed cable backplane. Capable of providing 80 Gigabits per second on a single chassis, upgradeable to 160 Gigabits per second in the future. NE9000 also provides complete SDN and virtual system functions to simplify the network architecture, aggregate the bearer of multiple services, and achieve high reliability and easy maintenance.
Huawei NE9000-8 Router Product Specifications
| 物品 | NE9000-20 | NE9000-8 |
| Forwarding performance | 12800 Mpps(LPUI-1T) | 5120 Mpps(LPUI-1T) |
| 交换容量 | 209.45 Tbps | 83.78 Tbps |
| 尺寸（高 x 宽 x 深） | 2200 mm (49.5 U) x 600 mm x 1000 mm (86.61 in. x 23.62 in. x 39.4 in.) | 1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.) |
| Weight (empty) | 231 kg (509.3 lb) | 159 kg (350.5 lb) |
| Weight (integrated chassis (cabinet + power supply + fan)) | 410 kg (903.9 lb) | 181 kg (339.0 lb) |
| Cabinet installation standard | The NE9000 chassis is integrated in a cabinet. | Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high Huawei N610E cabinet by default. |
| Typical power consumption | l 19600 W (2 MPU + 7 SFU + 20 8x100G CFP2) | 7.97kW (2 MPU + 8 SFU + 8 20x100G QSFP28) |
| l 18526 W (2 MPU + 8 SFU + 20 20x100G QSFP28) | ||
| Typical heat dissipation | l 63590.6 BTU/hour (2 MPU + 7 SFU + 20 8x100G CFP2) | 25858.0BTU (2 MPU + 8 SFU + 8 20x100G QSFP28) |
| l 60106.1BTU/hour (2 MPU + 8 SFU + 20 20x100G QSFP28) | ||
| DC input voltage | l -40 V to -72 V (-48 V/-60 V) | l -40 V to -72 V (-48 V/-60 V) |
| l 192 V to 400 V (240 V/380 V) | l 192 V to 400 V (240 V/380 V) | |
| AC input voltage | 180 V to 264 V (200 V to 240 V) | 180 V to 264 V (200 V to 240 V) |
| MTBF | 18.74 years | 18.87 years |
| MTTR | 0.5 hours | 0.5 hours |
| 可用性 | 100.00% | 100.00% |
| Slot quantity | 32 slots, including 2 MPU slots, 8 SFU slots, 20 LPU slots, and 2 CMU slots. | 18 slots, including 2 MPU slots, 8 SFU slots, and 8 LPU slots. |
| Redundant MPUs | 1:01 | 1:01 |
| Redundant Switch fabrics | 7+1 | 7+1 |
| Redundant fans | There are three fan partitions on the device, with each having four fan modules in 3+1 backup mode. | The device has two fan partitions. The LPU area provides three fan modules in 2+1 backup mode. The SFU area provides two fan chassis in 1+1 backup mode. |
主要特点
- Universal Compatibility: Supports IP/MPLS, DCI, and enterprise services on a single platform.
- 非阻塞架构: Enables 80Tbit/s electrical cross-connect for seamless traffic handling.
- 高可靠性: Features 12,000km submarine transmission without regeneration.
- Smart QoS: Prioritizes latency-sensitive applications with dynamic bandwidth allocation.
- IPv6支持: Ensures readiness for next-generation network protocols.
产品应用
这 NE9000-8 is ideal for core backbone networks, data center interconnect (DCI) ， 和 carrier-grade IP/MPLS infrastructure. Its modular design allows hierarchical deployment, integrating with NE9000-4/16 和 NE9000-E to build scalable, intelligent solutions. For example, it can optimize DCI efficiency for cloud providers or support high-capacity 5G backhaul.
Product Advantages
这 NE9000-8 combines modular flexibility with energy-efficient design, ensuring long-term investment protection. Its 80Tbit/s capacity and integrated intelligent functions simplify network upgrades, while advanced power management reduces operational costs. The device’s compatibility with legacy and next-gen technologies future-proofs infrastructure for evolving demands.
Huawei NE9000-8 Router Ordering Info
| 物料清单编号 | 订单名称 | 描述 |
| 02351CJC | CR9P9KBASD82 | NE9000-8 Basic Configuration(Include NE9000-8 48V DC Chassis,2*MPUP1,8*SFU4T-A,2*32G Memory,2*32G SSD Card,6*DC Power Module,without Software Charge and Document) |
| 02351NYN | CR9P9KBASA82 | NE9000-8 Basic Configuration(Include NE9000-8 220V AC Chassis,2*MPUP1,8*SFU4T-A,2*32G Memory,2*32G SSD Card,8*Power Module, without Software Charge and Document) |
| 02351CJB | CR9P9KBASH82 | NE9000-8 Basic Configuration(Include NE9000-8 240V/380V DC Chassis,2*MPUP1,8*SFU4T-A,2*32G Memory,2*32G SSD Card,8*Power Module, without Software Charge and Document) |
| 02351PMJ | CR9PBKP08ADC | NE9000-8 Integrated DC Chassis Components |
| 02351PMK | CR9PBKP08AAC | NE9000-8 Integrated AC Chassis Components |
| 02351PYJ | CR9PBKP08AHC | NE9000-8 Integrated 240V/380V HVDC Chassis Components |
| 3057531 | CR9D0MPUP180 | NE9000-8 Main Processing Unit P1(MPUP1) |
| 3057530 | CR9D0SFUT481 | NE9000-8 Switch Fabric Unit for Single Chassis(SFU4T-A) |
| 02311LDL | CR5B0PWRDC01 | NE9000 DC power distribution frame |
| 02311LDM | CR5B0PWRAC01 | NE9000 AC power distribution frame |
| 02311TSM | CR9B0PWRDC00 | NE9000-20 240V/380V HVDC power distribution frame |
| 02311CNP | PDC-2200WB | DC PSU-PDC-2200WB-2200W DC Power Module |
| 02310VMA | PHD-3000WA | AC&HVDC PSU,PHD-3000WA |
| 2122145 | CR5MDPD12500 | DPD125-12-24 DC Power Distribution Box |
| 物料清单 | 订单名称 | 描述 |
| 3057534 | CR9D00EKNB80 | 40-Port 100GBase-QSFP28 Integrated Line Process Unit(LPUI-4T) |
| 3057533 | CR9D00EKNB8P | 40-Port 100GBase-QSFP28 Integrated Line Process Unit CM(LPUI-4T-CM) |
| 物料清单 | 订单名称 | 描述 |
| 3057702 | CR9DLPUFT280 | 2T Flexible Card Line Processing Unit(LPUF-2T,2 sub-slots) |
| 03032NAC | CR9D00D8KC80 | 8-Port 100G ETH/DWDM-CFP2 Flexible Card |
| 3057932 | CR9D00EENB80 | 20-Port 100GBase-QSFP28 Integrated Line Process Unit(LPUI-2T) |
| 3057988 | CR9D00EENB8P | 20-Port 100GBase-QSFP28 Integrated Line Process Unit CM(LPUI-2T-CM) |
| 3057024 | CR9D00EDNB80 | 16-Port 100GBase-QSFP28 Integrated Line Process Unit(NE9000 LPUI-2T) |
| 3057679 | CR9D00EDNB8P | 16-Port 100GBase-QSFP28 Integrated Line Process Unit CM(NE9000 LPUI-2T-CM) |
这 NE9000-8 是华为路由产品组合的基石，提供无与伦比的性能和灵活性，满足现代网络需求。无论是部署 5G 基础设施还是扩展企业服务，这款路由器都能确保可靠、智能且可扩展的连接。
