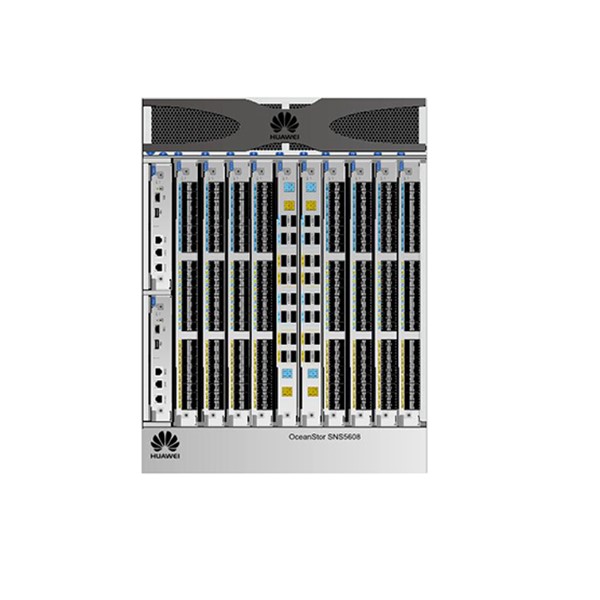

Huawei OceanStor SNS5608 FC Switch
4
Items sold in last day
12
People watching this product now!
描述
Huawei OceanStor SNS5608 FC Switch: High-Performance 64G Fibre Channel Storage Networking Solution
Explore the Huawei OceanStor SNS5608 FC Switch—64Gbps throughput, 48 ports, and low latency for enterprise SANs. Ideal for data centers requiring reliability and scalability.
產品概述
The Huawei OceanStor SNS5608 FC Switch is designed for modern data centers demanding high-speed, low-latency storage area networks (SANs). With 64G Fibre Channel technology, it supports up to 48 ports and delivers seamless scalability for evolving storage workloads. Its advanced features include automated traffic optimization, low power consumption, and robust security protocols, making it suitable for enterprises leveraging all-flash arrays, big data analytics, and cloud storage. The SNS5608 ensures 99.999% availability with hot-swappable components and redundant fabrics, minimizing downtime. Whether deploying hyper-converged infrastructure or managing mission-critical databases, this switch provides the performance and reliability needed to keep data flowing efficiently.
Huawei OceanStor SNS5608 FC Switch Product Specifications
| Model | SNS5604 | SNS5608 |
| Number of Ports | Up to 256 x 32 Gbit/s ports or a 320-port equivalent with 16 UltraScale ICL ports | Up to 512 x 32 Gbit/s ports or a 640-port equivalent with 128 Gbit/s (4 x 32 Gbit/s) UltraScale ICL ports (32 Gbit/s x 4 QSFP ports) |
| Port Types | FC32-48/FC32-64 port blade: F Port, E Port, EX Port, M Port, SIM, and D Port | |
| SX6 Extension Blade: F Port, E Port, and EX Port on FC, and VE Port on GbE | ||
| Fiber Channel Blades | FC32-48 port blade provides 48 ports of 32 Gbit/s Gen 6 Fiber Channel | |
| FC32-64 port blade provides 64 ports of 32 Gbit/s Gen 6 Fiber Channel | ||
| Extension Blades | SX6 Extension Blade provides Fiber Channel extension (16 x 32 Gbit/s Fiber Channel ports) and IP extension over IP networks (16 x 1/10 GbE and 2 x 40 GbE ports) | |
| 可擴展性 | Full-fabric architecture of 239 switches | |
| Chassis Bandwidth | 10.2 Tbit/s per chassis (256 ports x 32 Gbit/s) data rate + 2.048 Tbit/s UltraScale ICL bandwidth (16 x 128 Gbit/s) | 20.5 Tbit/s per chassis (512 ports x 32 Gbit/s) data rate + 4.096 Tbit/s UltraScale ICL bandwidth (32 x 128 Gbit/s) |
| Slot Bandwidth | 1,536 Gbit/s (line rate) | |
| Switch Latency | FC32-48/FC32-64 blade at Gen 6 32 Gbit/s speeds: < 780 ns (including FEC); any-port-to-any-port local switching and 2.6 μs blade to blade at 32 Gbit/s, cut-through routing | |
| SX6 blade, Fiber Channel to Fiber Channel: < 780 ns (including FEC) and 2.6 μs any-port-to-any-port at 32 Gbit/s, cut-through routing | ||
| Maximum Frame Size | 2,112-byte payload | |
| Frame Buffers | 15,360 per switching ASIC | |
Huawei OceanStor SNS5608 FC Switch Product Features
- Provides “pay-as-you-grow” flexibility and Ports on Demand (PoD) capabilities for port expansion, with speeds up to 16 Gbit/s.
- Unleashes the full potential of private cloud with unmatched scalability, performance, and reliability.
- Simplifies and centralizes end-to-end SAN management with comprehensive diagnostics, monitoring, and automation
- Critical diagnostic and monitoring capabilities: Help ensure early fault detection and recovery.
- Non-intrusive and non-disruptive monitoring on every port: Provides a comprehensive end-to-end view of the entire fabric.
- Forward Error Correction (FEC): Enables recovery from bit errors in links, enhancing transmission reliability and performance.
- Simpler server configuration and modification management, advanced cable/optical module diagnostics, and comprehensive management capabilities reduce operational costs.
- Diagnostic Ports (D_Ports) help identify and isolate faults in optical modules and cables, accelerating fabric architecture deployment and fault diagnosis.
- Network Advisor software provides comprehensive capabilities to manage the fabric architecture of a data center, such as configuring, monitoring, and managing backbone networks, switches, and adapters, thereby minimizing service interruption
Huawei OceanStor SNS5608 FC Switch and More SNS Switch
SNS2624
SNS3096
SNS3664
SNS3696E
SNS5604
SNS5608
Procurement Guidance
The Huawei OceanStor SNS5608 is ideal for:
Large Enterprises: Needing high-speed SANs for all-flash storage or virtualized environments.
Data Centers: Prioritizing scalability and low latency for cloud or big data workloads.
Mission-Critical Applications: Requiring 99.999% uptime and robust security.
Consider Alternatives If:
Your environment requires fewer than 24 ports (e.g., smaller branches).
Budget constraints preclude 64G Fibre Channel adoption (older 16G/32G switches may suffice).
Why Choose the SNS5608?
Imagine a storage network that adapts silentlyto your data demands—the SNS5608 does just that. It’s not merely a switch; it’s the backbone of your data integrity, ensuring every byte travels at lightning speed without compromise. With features like FC-NVMe support and automated load balancing, it future-proofs your investment while simplifying management. For organizations where data is the lifeblood, the SNS5608 is the trusted heartbeat. Ready to transform your SAN? This switch delivers.
Engineered for performance, built for trust. Huawei OceanStor SNS5608—where data meets destiny.
