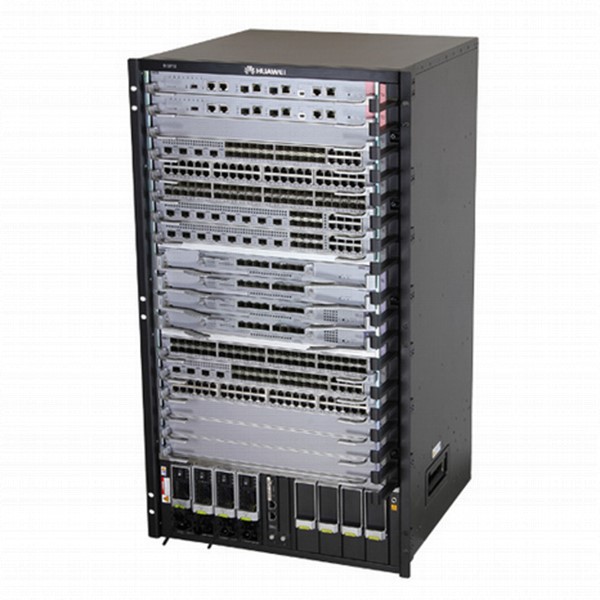

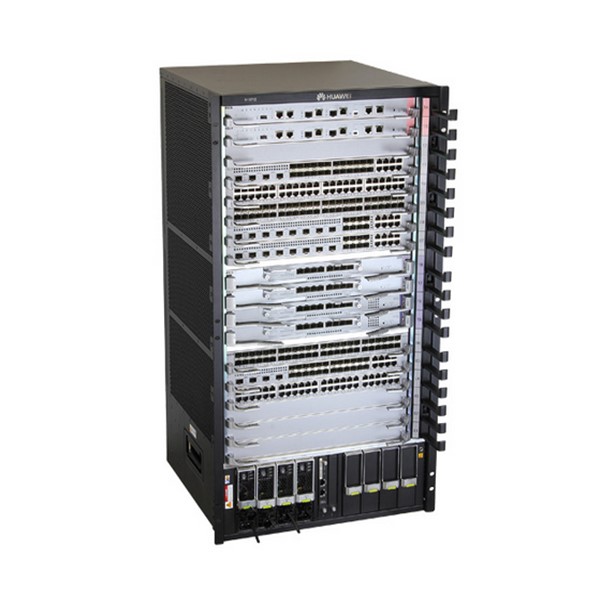

華為CloudEngine S12712交換機
描述
產品概述號
The Huawei S12712 isn’t just a core switch—it’s the beating heart of next-generation campus intelligence. Engineered for universities, broadcast networks, and Fortune 500 campuses, this flagship agile switch converges wired, wireless, and IoT services onto a single distributed platform. With its fully programmable architecture powered by Huawei’s ENP chips, the S12712 adapts to protocol evolutions through software updates—bypassing 1-3 years of hardware redesign cycles. Whether you’re supporting 4K broadcasting streams, scaling a smart city IoT backbone, or managing 10,000+ wireless users, the S12712 delivers zero-compromise density和軍事級彈性, transforming network complexity into seamless simplicity.
號詳細規格表號
從華為全球文件和部署基準中綜合的技術資料。
| 號範圍號 | 號S12712 Specification號 |
|---|---|
| 號外形尺寸號 | 15U height, 19-inch rack |
| 號尺寸（高×寬×深）號 | 663.9 × 442 × 420 mm |
| 號Weight號 | 64 kg (empty) / 159 kg (max) |
| 號服務時段號 | 12 LPU slots |
| 號Control/Forwarding號 | 2 MPU slots + 2 SFU slots |
| 號Max Port Density號 | 480×10GE or 80×100GE ports |
| 號交換容量號 | 4 Tbit/s |
| 號Hardware Entries號 | 1M MAC / 3M FIB / 1M NetStream |
| 號Native Wireless Control號 | Manages 10,240 APs (4 Tbit/s wireless throughput) |

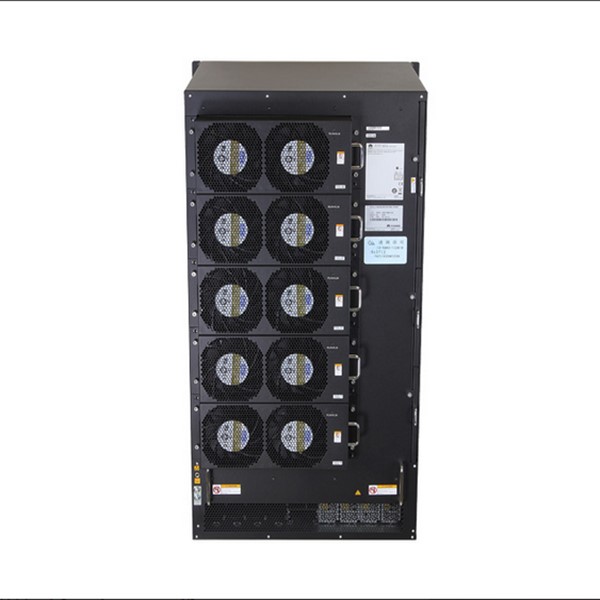

| 號冗餘號 | Dual MPUs, quad PSUs, quad fan modules |
| 號Power Consumption號 | ≤4,644 W (fully loaded) |
| 號Operating Temp號 | -40°C to +65°C |
| 號Humidity Tolerance號 | 5% to 95% RH (non-condensing) |
號Why Engineers Trust the S12712: Unmatched Advantages號
號1. Fully Programmable Architecture號
- 號Software-Defined Evolution: Deploy new protocols (e.g., future IPv6 extensions) via software updates—no hardware swaps needed.
- 號ENP Chip Flexibility: Huawei’s self-designed Ethernet Network Processors handle dynamic forwarding logic, slashing service deployment time from years to month.
號2. Hyper-Density for Bandwidth-Intensive Scenarios號
- 號Broadcast & Education Ready: Supports 480x10GE ports for 4K/8K video backbones (e.g., Jiangsu Cable TV) or university networks with 10,000+ concurrent users.
- 號Unified Wired-Wireless Core: Native 4 Tbit/s wireless controller capacity eliminates standalone AC bottlenecks.
號3. Carrier-Grade Resilience號
- 號Triple-Layer Redundancy:
- 硬體級: Hot-swappable MPUs, SFUs, and quad fan modules with zone cooling.
- 網路等級: Sub-50ms failover via BFD/FRR protocols—critical for emergency services.
- 服務等級: Hitless software upgrades during peak hours.
- 策略採購指南號
號對於網路架構師號
- 號Mega-Campuses & Broadcast Hubs: Deploy S12712 with 100GE cards (LST7C06HX6E0) for 5G backhaul or 8K video distribution.
- 號High-Growth Enterprises: Leverage SVF (Super Virtual Fabric) to virtualize core/access layers into one logical device—reducing OPEX by 60%.
Huawei S12712 Switch Product Specifications
| Item | S12704 | S12708 | S12710 | S12712 |
| Switching capacity | 4.88Tbps/16.08*Tbps | 12.32Tbps/44.96*Tbps | 13.12Tbps/38.56*Tbps | 17.44Tbps/44.96*Tbps |
| Packet forwarding rate | 3, 120Mpps/4, 560*Mpps | 6, 240Mpps/30, 240*Mpps | 7, 440Mpps/11, 040*Mpps | 9, 120Mpps/30, 240*Mpps |
| MPU slots | 2 | 2 | 2 | 2 |
| SFU slots | 2 | 4 | 4 (2 integrated in MPU) | 4 |
| Service card slots | 4 | 8 | 10 | 12 |
| Fan slots | 2 | 4 | 4 | 5 |
| Buffer size | 200ms buffer each port | |||
| Redundancy design | MPUs, SFUs, power supplies, and fan modules | |||
| CSS2 | 1+N backup of MPUs in a cluster | |||
| Up to 1.92 Tbit/s cluster bandwidth, 4 μs inter-chassis transmission latency | ||||
| Dimensions (H x W x D in mm) | 441.7x442x489, 10U | 663.95x442x489, 15U | 663.95x442x489, 15U | 841.75x442x489, 19U |
| Weight (empty chassis) | 24.5kg | 42kg | 28.6kg | 64kg |
| Operating voltage | DC：–40V～–72V | |||
| AC：90V～290V | ||||
| Maximum power consumption of the entire equipment | ≤2200W | ≤4400W | ≤4400W | ≤6600W |
Huawei S12712 Switch Features
Easy Operation
The Easy Operation can implement plug-and-play for newly deployed devices on the network and manage all devices running on the network in a unified manner. The functions are as follows: The network device Zero-Touch is deployed, and the startup files such as version files, configuration files, and patches are automatically loaded. Upgrade network devices in batches and deliver configurations in batches. New devices can be quickly replaced. Plug-and-play is not required for new devices.
Intelligent Diagnosis
Open Intelligent Diagnosis System (OIDS) integrates the device health monitoring and fault diagnosis functions – that are typically deployed on a Network Management System (NMS) – into the switch software to implement intelligent diagnosis on a single switch. After OIDS is deployed on a switch, the switch periodically collects and records the running information and automatically determines whether a fault occurs. If a fault occurs, the switch automatically locates the fault or helps locate the fault. All these merits increase fault locating efficiency of O&M staff while improving device maintainability.
Huawei S12712 Switch Product Ordering Info
| LE2BN66ED000 | N66E DC assembly rack (eight 60A outputs, maximum 2,200W per output, 600 x 600 x 2,200 mm) |
| LE2BN66EA000 | N66E AC assembly rack (four 16A outputs, maximum 2,500W per output, 600 x 600 x 2,200 mm) |
| ET1BS12704S0 | S12704 Assembly Chassis |
| ET1BS12708S0 | S12708 assembly chassis |
| ET1BS12710S0 | S12710 assembly chassis |
| ET1BS12712S0 | S12712 assembly chassis |
| ET1MFBX00000 | Wide Voltage 129 Fan Box |
| EH1M00FBX000 | Wide Voltage 74 Fan Box |
| Monitoring unit | |
| EH1D200CMU00 | Centralized monitoring unit |
| Main processing unit | |
| ET1D2MPUA000 | S12700 main control unit A, optional clock |
| ET1D2MPUBC00 | S12710 main control unit B, optional clock |
| ET1D2MPUBC01 | S12710,Main Processing Unit B (supports Secure Boot) |
| ET1D2MPUDC00 | S12704/S12708/S12712, main processing unit D |
| Switch fabric unit | |
| ET1D2SFUA000 | S12700 switch fabric unit A |
| ET1D2SFUB000 | S12700 switch fabric unit B |
| ET1D2SFUC000 | S12700 switch fabric unit C |
| ET1D2SFUD000 | S12700 switch fabric unit D |
| 100M/1,000M Ethernet electrical interface cards | |

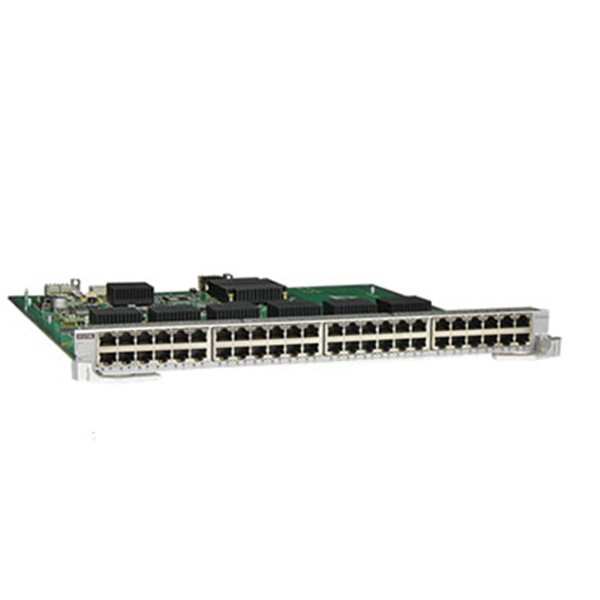

| ET1D2G48TEA0 | 48-port 10/100/1,000 BASE-T interface card (EA, RJ45) |
| ET1D2G48TEC0 | 48-port 10/100/1,000 BASE-T interface card (EC, RJ45) |
| ET1D2G48TX1E | 48-port 10/100/1,000 BASE-T interface card (X1E, RJ45) |
| ET1D2G48TX5S | 48-port 100/1000BASE-T interface card (X5S, RJ45) |
| ET1D2G48TX5E | 48-port 100/1000BASE-T interface card (X5E, RJ45) |
| ET1D2G48TX5H | 48-port 100/1000BASE-T interface card (X5H, RJ45) |
| 100M/1,000M Ethernet optical interface cards | |
| ET1D2G24SEC0 | 24-port 100/1,000 BASE-X interface card (EC, SFP) |
| ET1D2G24SX5E | 24-port 100/1000BASE-X interface card (X5E, SFP) |
| ET1D2G48SEA0 | 48-port 100/1,000 BASE-X interface card (EA, SFP) |
| ET1D2G48SEC0 | 48-port 100/1,000 BASE-X interface card (EC, SFP) |
| ET1D2G48SX1E | 48-port 100/1,000 BASE-X interface card (X1E, SFP) |
| ET1D2G48SX5S | 48-port 100/1000BASE-X interface card (X5S, SFP) |
| ET1D2G48SX5E | 48-port 100/1000BASE-X interface card (X5E, SFP) |
| ET1D2G48SX5H | 48-port 100/1000BASE-X interface card (X5H, SFP) |
| 100M/1,000M Ethernet electrical and optical interface cards | |
| ET1D2T36SEA0 | 36-port 10/100/1000 BASE-T and 12-port 100/1000 BASE-X interface card (EA, RJ45/SFP) |
| 10 GE optical interface cards | |
| ET1D2S04SX1E | 4-port 10G BASE-X and 24-port 100/1000 BASE-X and 8-port 10/100/1000 BASE-T combo interface card (X1E, RJ45/SFP/SFP+) |
| ET1D2S04SX5E | 4-port 10GE SFP+ and 44-port GE SFP interface card (X5E, SFP+) |
| ET1D2S08SX1E | 8-port 10G BASE-X and 8-port 100/1000 BASE-X and 8-port 10/100/1000 BASE-T combo interface card (X1E, RJ45/SFP/SFP+) |
| ET1D2X08SX5E | 8-port 10GE SFP+ interface card (X5E, SFP+) |
| ET1D2X08SX5H | 8-port 10GE SFP+ interface card (X5H, SFP+) |
| ET1D2X16SSC2 | 16-Port 10GBASE-X Interface Card(SC, SFP+) |
| ET1D2X32SSC0 | 32-Port 10GBASE-X Interface Card(SC, SFP+) |
| ET1D2X48SEC0 | 48-port 10G BASE-X interface card (EC, SFP+) |
| ET1D2X32SX2H | 32-Port 10GE SFP+ Interface Card(X2H, SFP+) |
| ET1D2X32SX2S | 32-Port 10GE SFP+ Interface Card(X2S, SFP+) |
| ET1D2X32SX2E | 32-Port 10GE SFP+ Interface Card(X2E, SFP+) |
| ET1D2S24SX2S | 24-Port 10GE SFP+ Interface and 8-Port GE SFP Interface Card(X2S, SFP+) |
| ET1D2S24SX2E | 24-Port 10GE SFP+ Interface and 8-Port GE SFP Interface Card(X2E, SFP+) |
| ET1D2S16SX2S | 16-Port 10GE SFP+ Interface and 16-Port GE SFP Interface Card(X2S, SFP+) |
| ET1D2S16SX2E | 16-Port 10GE SFP+ Interface and 16-Port GE SFP Interface Card(X2E, SFP+) |
| ET1D2X48SX2S | 48-Port 10GE SFP+ Interface Card(X2S, SFP+) |
| 40 GE optical interface cards | |
| ET1D2L02QSC0 | 2-port 40G BASE-X interface card (SC, QSFP+) |
| ET1D2L08QSC0 | 8-port 40G BASE-X interface card (SC, QSFP+) |
| EH1D2L08QX2E | 8-Port 40 GE QSFP+ Interface Card (X2E, QSFP+) |
| ET1D2L16QX2H | 16-Port 40 GE QSFP+ Interface Card (X2H, QSFP+) |
| 100 GE optical interface cards | |
| ET1D2C02FEE0 | 2-Port 100G BASE-X Interface Card(EE,CFP) |
| ET1D2C04HX2H | 4-Port 100 GE QSFP28 Interface Card (X2H, QSFP28) |
| ET1D2C04HX2S | 4-Port 100 GE QSFP28 Interface Card (X2S, QSFP28) |
| ET1D2C04HX2E | 4-Port 100 GE QSFP28 Interface Card (X2E, QSFP28) |
| ET1D2C08HX2H | 8-Port 100 GE QSFP28 Interface Card (X2H, QSFP28) |
| ET1D2H02QX2S | 2-Port 100 GE QSFP28 Interface and 2-Port 40 GE QSFP+ Interface Card (X2S, QSFP28) |
| ET1D2H02QX2E | 2-Port 100 GE QSFP28 Interface and 2-Port 40 GE QSFP+ Interface Card (X2E, QSFP28) |
| Service subcards | |
| EH1D2VS08000 | 8-port 10G cluster switching system service unit (SFP+) |
| ET1D2VQ06000 | 6-Port 40 GE Cluster Switching System Service Unit (QSFP+) |
| LE0D00CKMA00 | Clock Pinch Board-1588 |
| Service processing cards | |
| ET1D2FW00S00 | NGFW Module A, with HW General Security Platform Software |
| ET1D2FW00S01 | NGFW Module B, with HW General Security Platform Software |
| ET1D2FW00S02 | NGFW Module C, with HW General Security Platform Software |
| ET1D2IPS0S00 | IPS Module A, with HW General Security Platform Software |
| ACU2 | WLAN ACU2 Access Controller Unit (128 AP Control Resource Included) |
| Optical transceivers | |
| FE-SFP optical transceiver | |
| SFP-FE-SX-MM1310 | Optical transceiver, SFP, 100M/155M, Multi-mode Module (1,310 nm, 2 km, LC) |
| eSFP-FE-LX-SM1310 | Optical transceiver, eSFP, 100M/155M, Single-mode Module (1,310 nm, 15 km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical transceiver, eSFP, FE, single-mode module (1,310 nm, 40 km, LC) |
| S-SFP-FE-LH80-SM1550 | Optical transceiver, eSFP, FE, single-mode module (1,550 nm, 80 km, LC) |
| GE-SFP optical transceiver | |
| SFP-1000BaseT | Copper transceiver, SFP, GE, electrical interface module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical transceiver, eSFP, GE, multimode module (850 nm, 0.5 km, LC) |
| SFP-GE-LX-SM1310 | Optical transceiver, SFP, GE, single-mode module (1,310 nm, 10 km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical transceiver, eSFP, GE, single-mode module (1,310 nm, 40 km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 40 km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 80 km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical transceiver, eSFP, GE, single-mode module (1,550 nm, 100 km, LC) |
| 10 GE-XFP Optical transceiver | |
| XFP-SX-MM850 | Optical transceiver, XFP, 10G, multimode module (850 nm, 0.3 km, LC) |
| XFP-STM64-LX-SM1310 | Optical transceiver, XFP, 10G, single-mode module (1,310 nm, 10 km, LC) |
| XFP-STM64-LH40-SM1550 | Optical transceiver, XFP, 10G, single-mode module (1,550 nm, 40 km, LC) |
| XFP-STM64-SM1550-80 km | Optical transceiver, XFP, 10G, single-mode module (1,550 nm, 80 km, LC) |
| 10 GE-SFP+ Optical transceiver | |
| OMXD30000 | Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.3 km, LC) |
| OSX010000 | Optical transceiver, SFP+, 10G, single-mode module (1,310 nm, 10 km, LC) |
| OSX040N01 | Optical transceiver, SFP+, 10G, single-mode module (1,550 nm, 40 km, LC) |
| OSXD22N00 | Optical transceiver, SFP+, 10G, single-mode module (1,310 nm, 0.22km, LC, LRM) |
| SFP-10G-USR | Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.1 km, LC) |
| SFP-10G-ZR | Optical transceiver, SFP+, 10G, single-mode module (1,550 nm, 80 km, LC) |
| SFP-10G-ZCW1571 | Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,571 nm, 70 km, LC) |
| SFP-10G-ZCW1591 | Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,591 nm, 70 km, LC) |
| SFP-10G-ZCW1611 | Optical transceiver, SFP+, 10G, single-mode module (CWDM, 1,611 nm, 70 km, LC) |
| SFP-10G-iLR | Optical transceiver, SFP+, 10G, single-mode module (DWDM, 1560.61–1529.16nm, 60km, LC) |
| SFP-10G-ZDWT-L | Optical Transceiver, SFP+, 9.8G, Single-mode Module (1,310 nm, 1.4 km, LC) |
| 40 GE optical transceivers | |
| QSFP-40G-iSR4 | 40G Base-iSR4 Optical transceiver, QSFP, 40G, multimode module (850 nm, 0.15 km, MPO) (connecting to four SFP+ optical transceivers) |
| QSFP-40G-LX4 | 40G Base-LX4 Optical Transceiver, QSFP+, 40 GE, Single-mode (1,310 nm, 2 km, LC), Multi-mode (1,310 nm, 0.15 km, LC) |
| QSFP-40G-iSM4 | 40G Base-iSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1,310 nm, 1.4 km, MPO) (connecting to four SFP+ optical transceivers) |
| QSFP-40G-eSM4 | 40G Base-eSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (,1310 nm, 10 km, MPO) (connecting to four SFP+ optical transceivers) |
| QSFP-40G-LR4 | 40G Base-LR4 optical transceiver, QSFP+, 40G, single-mode module (1,310 nm, 10 km, LC) |
| QSFP-40G-eSR4 | 40G Base-eSR4 Optical transceiver, QSFP+, 40G, multimode module (850 nm, 0.3 km, MPO) (connecting to four SFP+ optical transceivers) |
| CFP-40G-SR4 | High-Speed Transceiver, CFP, 40G, Multimode Module (850 nm, 4 x 10G, 0.1 km, MPO) |
| CFP-40G-LR4 | High-Speed Transceiver, CFP, 40G, Single-mode Module (1,310 nm band, 41.25G, 10 km, stright LC) |
| CFP-40G-ER4 | High-Speed Transceiver, CFP, 40G, Single-mode Module (1,310 nm band, 41.25G, 40 km, stright LC) |
| CFP-40G-ZR4 | High-Speed Transceiver, CFP,40G, Single-mode Module (1,550 nm band, 41.25G, 80 km, stright LC) |
| QSFP-40G-ER4 | 40G Base-ER4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1,310 nm, 40 km, LC) |
| 100 GE optical transceivers | |
| CFP-100G-SR10 | High-Speed Transceiver, CFP, 100G, Multimode Module (850 nm, 10 x 10G, 0.1 km, MPO) (can connect to 10 SFP+ ports or 2 QSFP+ ports) |
| CFP-100G-LR4 | High-Speed Transceiver, CFP, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 10 km, stright LC) |
| CFP-100G-ER4 | High-Speed Transceiver, CFP, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 40 km, stright LC) |
| CFP-100GE-ZR4 | 100G Base,CFP Module, 100G, Single-mode Module (1,310 nm band, 4 x 25G, 80 km, stright LC) |
| QSFP-100G-CLR4 | High-Speed Transceiver, QSFP28, 1,310 nm, 4 x 25G Base, -6.5 dBm, 2.5 dBm, -10.7 dBm, LC/PC, 2 km |
| QSFP-100G-CWDM4 | High-Speed Transceiver, QSFP28, 1,310 nm, 4 x 25G Base, -6.5 dBm, 2.5 dBm, -9.8 dBm, LC/PC, 2 km |
| QSFP-100G-ER4-Lite | 100G Base-ER4-Lite Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 30 km (FEC OFF), 40 km (FEC ON), LC) |
| QSFP-100G-LR4 | 100G Base-LR4 Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 10 km, LC) |
| QSFP-100G-SR4 | 100G Base-SR4 Optical Transceiver, QSFP28, 100G, Multi-mode (850 nm, 0.1 km, MPO) |
| QSFP-100G-PSM4 | 100G Base-PSM4 Optical Transceiver, QSFP28, 100G, Single-mode module (1,310 nm, 0.5 km, MPO) |
| BIDI-SFP optical transceivers | |
| SFP-FE-LX-SM1310-BIDI | Optical transceiver, eSFP, FE, BIDI single-mode module (TX1310/RX1550, 15 km, LC) |
| SFP-FE-LX-SM1550-BIDI | Optical transceiver, eSFP, FE, BIDI single-mode module (TX1550/RX1310, 15 km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical transceiver, eSFP, GE, BIDI single-mode module (TX1310/RX1490,10 km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical transceiver, eSFP, GE, BIDI single-mode module (TX1490/RX1310,10 km, LC) |
| LE2MGSC40ED0 | Optical transceiver, SFP, GE, BIDI single-mode module (TX1490/RX1310, 40 km, LC) |
| LE2MGSC40DE0 | Optical transceiver, SFP, GE, BIDI single-mode module (TX1310/RX1490, 40 km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1570/RX1490, 80 km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1570, 80 km, LC) |
| BIDI-SFP+ optical transceivers | |
| SFP-10G-ER-SM1330-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX1330/RX1270, 40 km, LC) |
| SFP-10G-ER-SM1270-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX1270/RX1330, 40 km, LC) |
| SFP-10G-BXU1 | 10G Base, Bi-Directional (BIDI) optical transceiver, SFP, 10G, single-mode module (TX1270/RX1330, 10 km, LC) |
| SFP-10G-BXD1 | 10G Base, BIDI optical transceiver, SFP, 10G, single-mode module (TX1330/RX1270, 10 km, LC) |
| High-Speed Cable | |
| SFP-10G-CU1M | SFP+,10G, High-Speed Direct-attach Cables, 1m, SFP + 20M, CC2P0.254B(S), SFP + 20M, used indoors |
| SFP-10G-CU3M | SFP+, 10G, High-Speed Direct-attach Cables, 3m, SFP + 20M, CC2P0.254B(S), SFP + 20M, used indoors |
| SFP-10G-CU5M | SFP, 10G, High-Speed Cable, 5m, SFP + 20M, CC2P0.254B(S), SFP + 20M, LSFRZH for indoors |
| SFP-10G-AC10M | SFP+, 10G, Active High-Speed Cables, 10m, SFP + 20M, CC2P0.32B(S), SFP + 20M, used indoors |
| QSFP-4SFP10G-CU1M | QSFP+, 4SFP + 10G, High-Speed Direct-attach Cables, 1m, QSFP + 38M, CC8P0.254B(S), 4 x SFP + 20M, used indoors |
| QSFP-4SFP10G-CU3M | QSFP+, 4SFP + 10G, High-Speed Direct-attach Cables, 3m, QSFP + 38M, CC8P0.32B(S), 4 x SFP + 20M, used indoors |
| QSFP-4SFP10G-CU5M | QSFP+, 4SFP + 10G, High-Speed Direct-attach Cables, 5m, QSFP + 38M, CC8P0.4B(S), 4 x SFP + 20M, used indoors |
| QSFP-40G-CU1M | QSFP+, 40G, High-Speed Direct-attach Cables, 1m, QSFP + 38M, CC8P0.254B(S), QSFP + 38M, used indoors |
| QSFP-40G-CU3M | QSFP+, 40G, High-Speed Direct-attach Cables, 3m, QSFP + 38M, CC8P0.32B(S), QSFP + 38M, used indoors |
| QSFP-40G-CU5M | QSFP+, 40G, High-Speed Direct-attach Cables, 5m, QSFP + 38M, CC8P0.40B(S), QSFP + 38M, used indoors |
| QSFP-100G-CU1M | High-Speed Cable, 100G QSFP28 Passive High-Speed Cable, 1m, QSFP28, CC8P0.254B(S), QSFP28, ETH 100 GbE |
| QSFP-100G-CU3M | High-Speed Cable, 100G QSFP28 Passive High-Speed Cable, 3m, QSFP28, CC8P0.254B(S), QSFP28, ETH 100 GbE |
| QSFP-100G-CU5M | High-Speed Cable, 100G QSFP28 Passive High-Speed Cable, 5m, QSFP28, CC8P0.4B(S), QSFP28, ETH 100 GbE |
| Optical Fiber | |
| SFP-10G-AOC3M | AOC Optical Transceiver, SFP+, 850 nm, 1G to 10G, 0.003 km |
| SFP-10G-AOC10M | AOC Optical Transceiver, SFP+, 850 nm, 1G to 10G, 10m |
| QSFP-H40G-AOC10M | Optical transceiver, QSFP+, 40G, (850 nm, 10m, AOC) |
| QSFP-4SFP10-AOC10M | Optical transceiver, QSFP+, 40G, (850 nm, 10m, AOC) (connecting to four SFP+ optical transceivers) |
| QSFP-100G-AOC10M | High-Speed Transceiver, QSFP28 to QSFP28 AOC, 850 nm, 100G, 0.01 km |
| Power modules | |
| PAC-2200WF | 2,200W AC power module |
| PDC-2200WF | 2,200W DC power module |
| W2PSA0800 | 800W AC Power Module (black) |
| Software | |
| ET1SBSM28000 | S12700 V200R008C00 software |
| ET1SBSM2A000 | S12700 V200R010C00 software |
| ET1SBSM2B010 | S12700 V200R011C10 software |
| ET1SBSM2C000 | S12700 V200R012C00 software |
| ET1SBSM2D000 | S12700 V200R013C00 Mainframe Software |
| License | |
| ET1SMPLS0000 | MPLS Function License |
| ET1SNQA00000 | NQA Function License |
| ET1SIPV60000 | IPV6 Function License |
| ET1SSVFF0000 | SVF Function License (applicable only to the S12700 series) |
| ET1SVXLAN000 | VXLAN enhanced function license(used in S12700 series) |
| ET1SFIB128K0 | X-series LPU FIB Resource License-128K |
| ET1SFIB512K0 | X-series LPU FIB Resource License-512K |
| ET1SWL512AP0 | WLAN Access Controller AP Resource License-512AP (with the X-series LPU used) |
| ET1SWL128AP0 | WLAN Access Controller AP Resource License-128AP (with the X-series LPU used) |
| ET1SWL64AP00 | WLAN Access Controller AP Resource License-64AP (with the X-series LPU used) |
| ET1SWL16AP00 | WLAN Access Controller AP Resource License-16AP (with the X-series LPU used) |
| L-ACU2-128AP | ACU2 Wireless Access Controller AP Resource License (128 AP) |
| L-ACU2-256AP | ACU2 Wireless Access Controller AP Resource License (256 AP) |
| L-ACU2-384AP | ACU2 Wireless Access Controller AP Resource License (384 AP) |
| L-ACU2-512AP | ACU2 Wireless Access Controller AP Resource License (512 AP) |
| Documentation | |
| ET1IV2RDC0E0 | S12700 Series Agile Switches V200R013C00 Product Documentation |
- The Final Word: Where Resilience Meets Revolution號
The S12712 isn’t a hardware purchase—it’s a 10-year strategic alliance with innovation. By converging programmable silicon, hyper-density port architectures, and carrier-grade fault tolerance, it transforms your network from a cost center into a revenue catalyst. For universities streaming VR labs, broadcasters delivering 8K sports, or enterprises building private 5G—this switch is the silent force turning tomorrow’s ambitions into today’s operations.
號Architect tomorrow’s networks today. Choose Huawei S12712.
評價 (0)
運輸和交付
運輸和交付
運送方式
透過值得信賴的承運商進行全球運輸：
- 標準：7-15個工作天
- 加急：3-7 個工作天
- 本地送貨（如有）
處理時間
訂單驗證後 1-2 個工作天內出貨。
追蹤與職責
發貨後將透過電子郵件發送追蹤訊息。如有關稅/進口費用，由買家負擔。
延誤
由於海關、假期或天氣原因偶爾會發生延誤。
商品評價
目前沒有評價。
